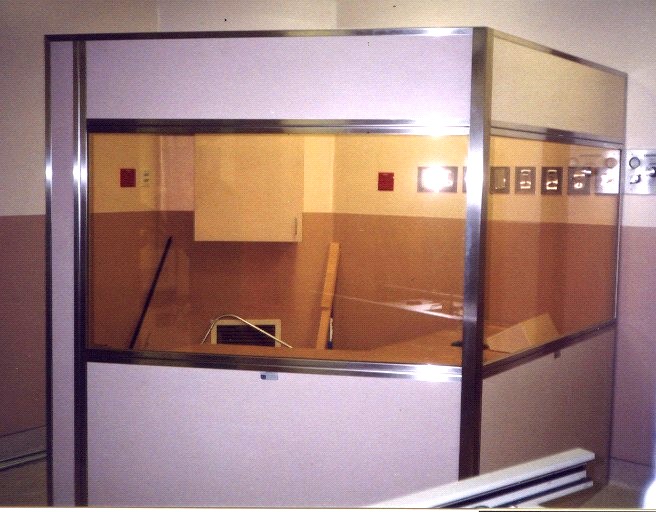

Many installations to save space are utilizing pre-made operator control walls that are factory constructed and shipped to the job site completely assembled and ready for easy attachment. Since these are rarely thicker than 2" they save floor space and reduce the trauma of having to build a framed wall in the x-ray room.

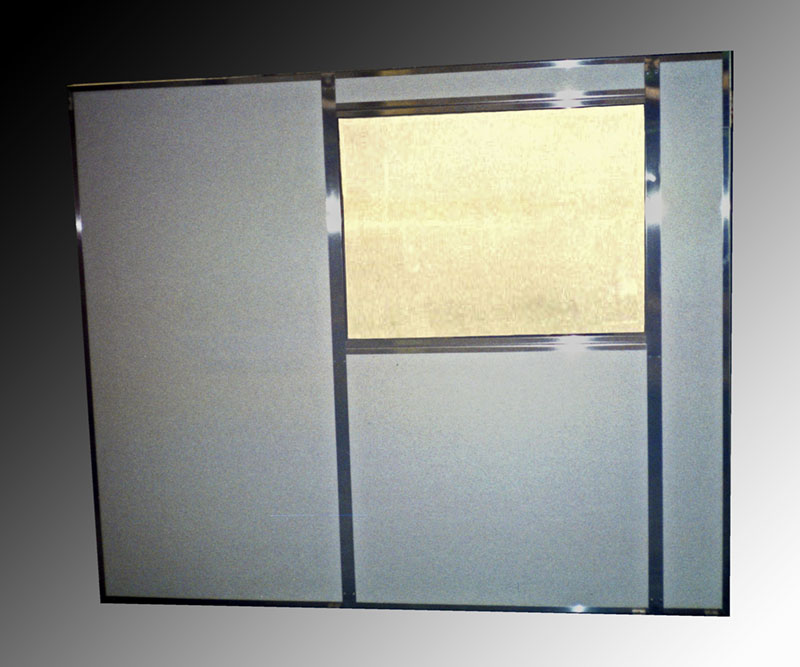

Barriers with lead acrylic windows offer an added advantage of being approved for "full width" window viewing and not subject to the NCR recommendation which suggests the window be at least 18" in from the end of the wall so that the operator is not tempted to communicate with the patient by having their head beyond the protective wall.

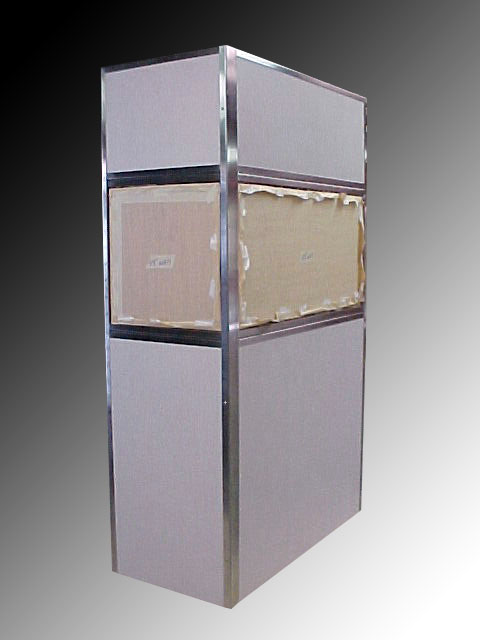

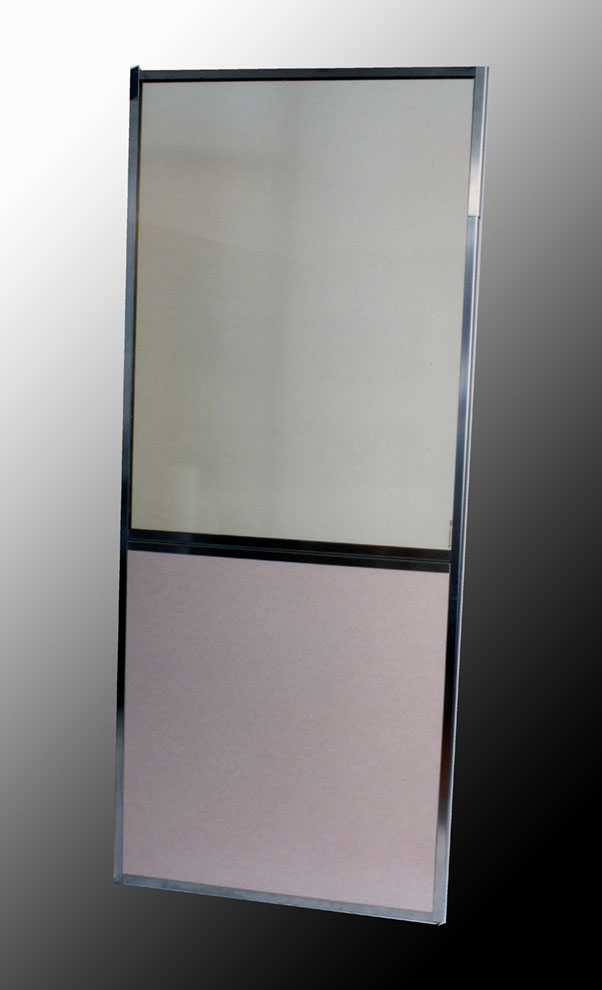

These units can be configured in any arrangement and each segment will be shipped completely assembled for rapid on site installation. The upper window and lower shielded opaque barrier are generally framed in 14GA stainless steel. We can match any desired customer color.
